四、后台模板 ​

4.1 静态路由配置 ​

  1. 安装vue-router

    pnpm i vue-router

  2. 根组件添加路由占位符

    html
    <!-- App.vue -->
<!-- 路由占位 -->
<router-view></router-view>

  3. 创建 router 路由文件

    js
    // src/router/index.ts
import { createRouter, createWebHashHistory } from "vue-router";
// 创建路由器
const router = createRouter({
  // 路由模式
  history: createWebHashHistory(),
  routes: [
    {
      // 登录
      path: "/login",
      component: () => import("@/views/login/index.vue"),
      name: "login", // 命名路由
    },
    {
      // 首页
      path: "/",
      component: () => import("@/views/home/index.vue"),
      name: "home", // 命名路由
    },
    {
      // 404
      path: "/404",
      component: () => import("@/views/404/index.vue"),
      name: "404", // 命名路由
    },
    {
      // 上面路由都没匹配
      path: "/:pathMatch(.*)*",
      redirect: "/404",
      name: "any",
    },
  ],
  // 滚动行为
  scrollBehavior() {
    return {
      top: 0,
      left: 0,
    };
  },
});
export default router;

  4. 入口文件引入路由文件

    js
    // main.ts
// 引入路由文件
import router from "./router";
// 安装router
app.use(router);

  5. 创建路由对应的页面

    vue
    // 404页面
<template>
  <div>
    <h3>404</h3>
  </div>
</template>
<script setup lang="ts"></script>
<style scoped></style>

    4.2 登录页 ​

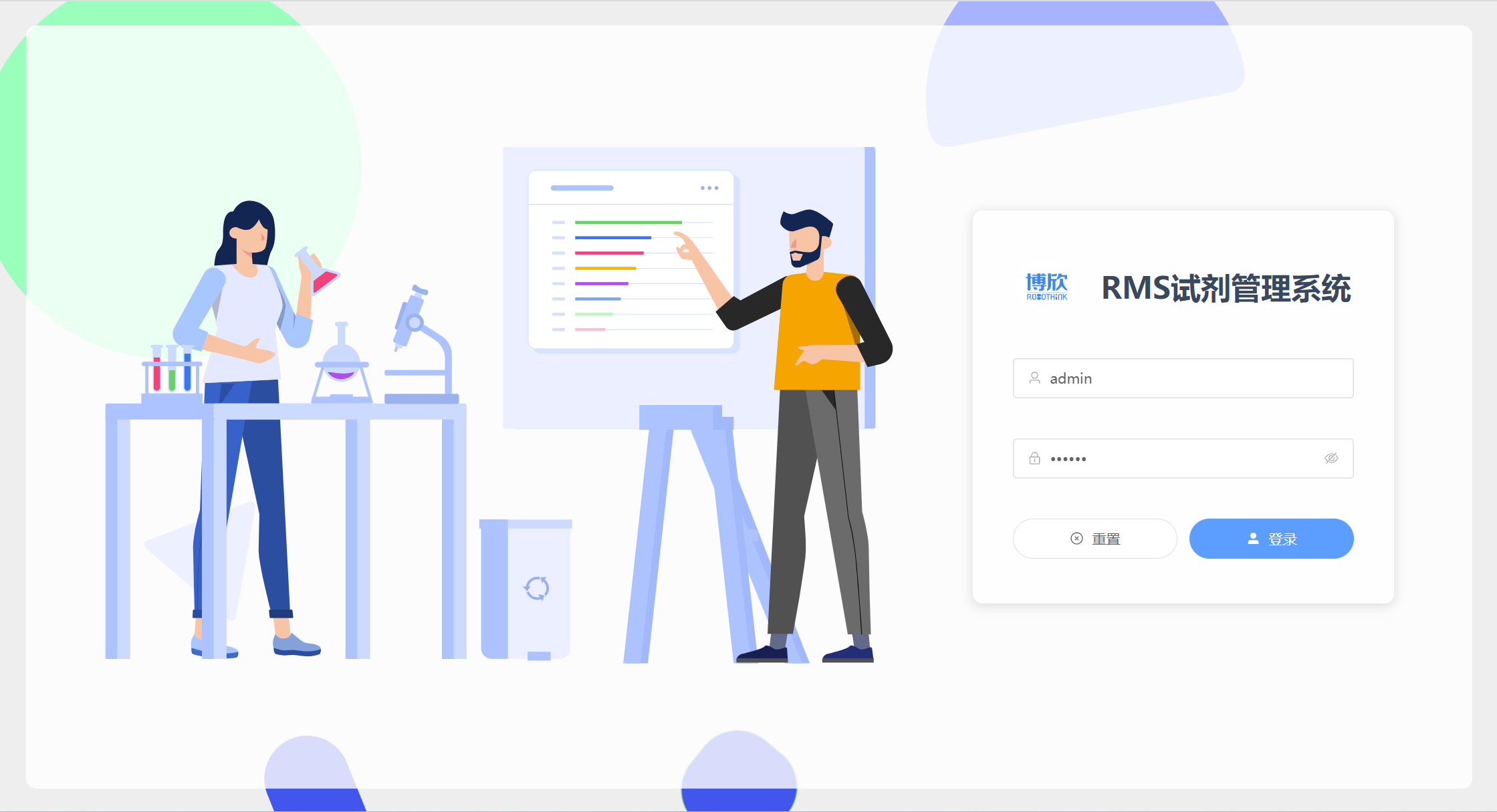

    效果图（兼容移动端）

    An image

    1. 全部代码
      点击查看
      vue
      <template>
  <div class="login-container flx-center">
    <div class="login-box">
      <div class="login-left">
        <img
          class="login-left-img"
          src="@/assets/images/login_left.png"
          alt="login"
        />
      </div>
      <div class="login-form">
        <div class="login-logo">
          <img class="login-icon" src="@/assets/images/logo.png" alt="" />
          <h2 class="logo-text">RMS试剂管理系统</h2>
        </div>

        <el-form ref="loginFormRef" size="large" :model="loginForm">
          <el-form-item prop="username">
            <el-input
              v-model="loginForm.username"
              placeholder="请输入用户名"
              :prefix-icon="User"
            >
            </el-input>
          </el-form-item>
          <el-form-item prop="password">
            <el-input
              v-model="loginForm.password"
              type="password"
              placeholder="请输入密码"
              show-password
              autocomplete="new-password"
            >
              <template #prefix>
                <el-icon class="el-input__icon">
                  <lock />
                </el-icon>
              </template>
            </el-input>
          </el-form-item>
        </el-form>
        <div class="login-btn">
          <el-button :icon="CircleClose" round size="large">
            重置
          </el-button>
          <el-button :icon="UserFilled" round size="large" type="primary">
            登录
          </el-button>
        </div>
      </div>
    </div>
  </div>
</template>

<script setup lang="ts">
import { reactive } from "vue";
import {
  CircleClose,
  User,
  UserFilled,
  Lock,
} from "@element-plus/icons-vue";
const loginForm = reactive({
  username: "",
  password: "",
});
</script>

<style scoped lang="scss">
.flx-center {
  display: flex;
  align-items: center;
  justify-content: center;
}
.login-container {
  height: 100%;
  min-height: 550px;
  background-color: #eeeeee;
  background-image: url("@/assets/images/login_bg.svg");
  background-size: 100% 100%;
  background-size: cover;

  .login-box {
    position: relative;
    box-sizing: border-box;
    display: flex;
    align-items: center;
    justify-content: space-around;
    width: 96.5%;
    height: 94%;
    padding: 0 50px;
    background-color: rgb(255 255 255 / 80%);
    border-radius: 10px;

    .dark {
      position: absolute;
      top: 13px;
      right: 18px;
    }

    .login-left {
      width: 800px;
      margin-right: 10px;

      .login-left-img {
        width: 100%;
        height: 100%;
      }
    }

    .login-form {
      width: 420px;
      padding: 50px 40px 45px;
      background-color: var(--el-bg-color);
      border-radius: 10px;
      box-shadow: rgb(0 0 0 / 10%) 0 2px 10px 2px;

      .login-logo {
        display: flex;
        align-items: center;
        justify-content: center;
        margin-bottom: 45px;

        .login-icon {
          width: 60px;
          height: 52px;
        }

        .logo-text {
          padding: 0 0 0 25px;
          margin: 0;
          font-size: 30px;
          font-weight: bold;
          color: #34495e;
          white-space: nowrap;
        }
      }

      .el-form-item {
        margin-bottom: 40px;
      }

      .login-btn {
        display: flex;
        justify-content: space-between;
        width: 100%;
        margin-top: 40px;
        white-space: nowrap;

        .el-button {
          width: 185px;
        }
      }
    }
  }
}

@media screen and (width <=1250px) {
  .login-left {
    display: none;
  }
}

@media screen and (width <=600px) {
  .login-form {
    width: 97% !important;
  }
}
</style>

4.3 创建用户 store 仓库 ​

  1. 安装pinia

    pnpm i pinia

  2. 引入并使用 pinia

    js
    // main.js
// 引入仓库
import pinia from "./store/index.ts";
// 使用store仓库
app.use(pinia);

  3. 创建 store 仓库入口文件

    js
    // src/store/index.ts
import { createPinia } from "pinia";
// 创建store仓库
const pinia = createPinia();
// 对外暴露仓库
export default pinia;

  4. 创建用户仓库模块

    js
    // store/modules/user.ts
// 用户相关仓库
import { defineStore } from "pinia";
// 引入接口
import { login } from "@/api/user";
// 引入数据类型
import type { loginForm } from "@/api/user/type";
// 创建用户仓库
const useUserStore = defineStore("User", {
  // 存储数据的地方
  state: () => {
    return {
      token: localStorage.getItem("TOKEN") || "",
    };
  },
  // 异步/逻辑的地方
  actions: {
    // 用户登录的方法
    async userLogin(data: loginForm) {
      const result: any = await login(data);
      if (result.code == 200) {
        this.token = result.data.token;
        localStorage.setItem("TOKEN", result.data.token);
        return "OK";
      } else {
        return Promise.reject(new Error(result.data.message));
      }
    },
  },
});
// 默认导出
export default useUserStore;

  5. 登录页引用用户仓库

    js
    // 引入用户store仓库
import useUserStore from "@/store/modules/user";
let userStore = useUserStore();
// 使用userStore中的方法
userStore.userLogin();

4.4 首页布局 ​

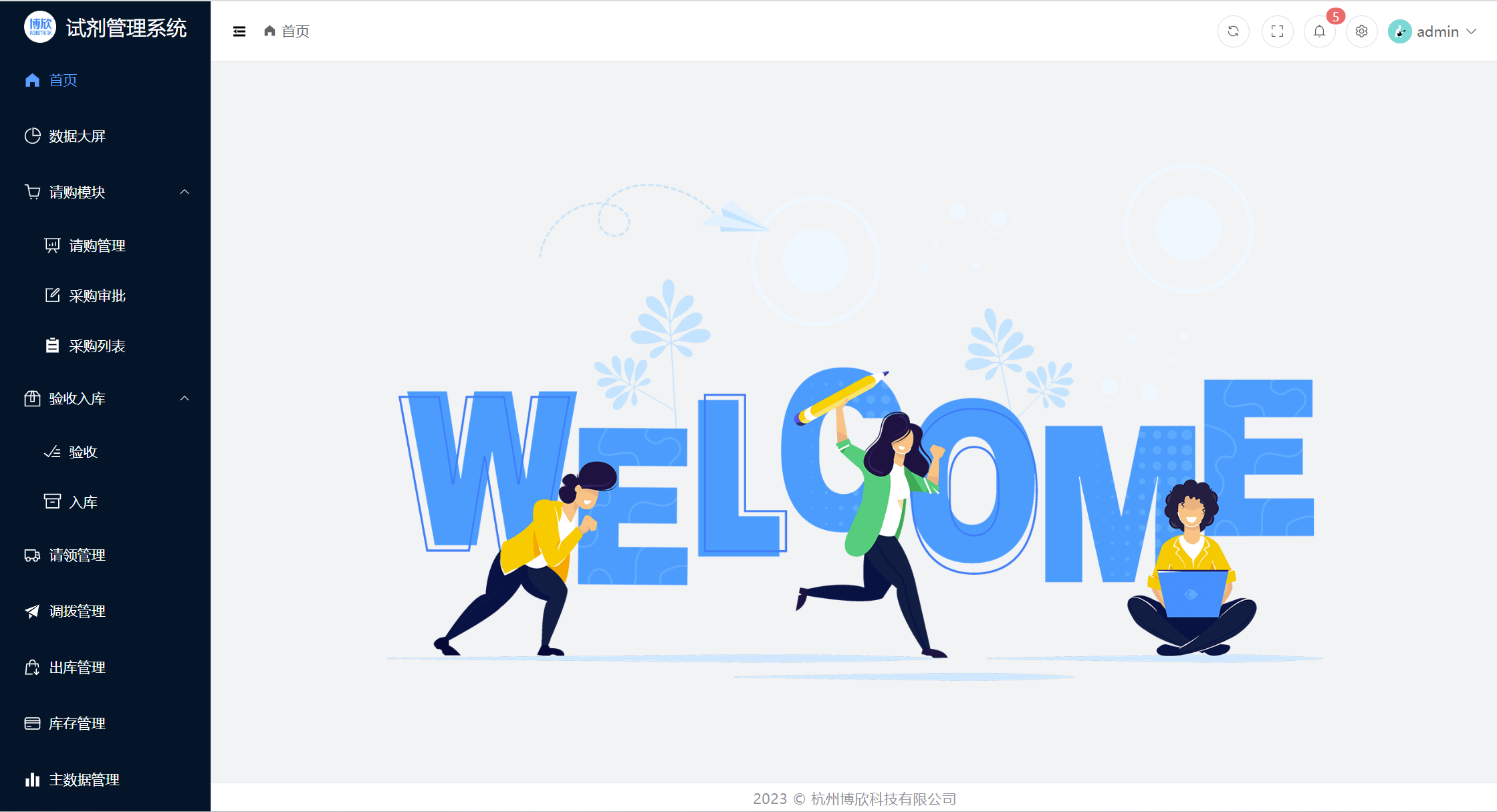

效果图（兼容移动端）

An image

  1. 全部代码
    点击查看
    vue
    <template>
  <el-container>
    <!-- 左侧菜单 -->
    <el-aside :style="{ width: layoutStore.fold ? '65px' : '210px' }">
      <!-- 展示菜单 -->
      <div class="logo">
        <img :src="SetTitle.logo" alt="" />
        <p v-if="!layoutStore.fold" class="title">{{ SetTitle.title }}</p>
      </div>
      <!-- 滚动组件 -->
      <el-scrollbar class="scrollbar">
        <!-- 菜单组件-->
        <el-menu
          :default-active="$route.path"
          background-color="#001529"
          text-color="white"
          :collapse="layoutStore.fold"
          :collapse-transition="false"
        >
          <!--根据路由动态生成菜单-->
          <Menu :menulist="userStore.menuRouters"></Menu>
        </el-menu>
      </el-scrollbar>
    </el-aside>
    <el-container>
      <!-- 顶部导航 -->
      <el-header>
        <!-- layout组件的顶部导航tabbar -->
        <Tabbar></Tabbar>
      </el-header>
      <!-- 内容展示区域 -->
      <el-main>
        <Main></Main>
      </el-main>
      <el-footer v-show="layoutStore.showFooter">
        <Footer></Footer>
      </el-footer>
    </el-container>
  </el-container>
  <!-- 设置抽屉组件 -->
  <Draw></Draw>
</template>

<script setup lang="ts">
import { onMounted } from "vue";
//获取路由对象
import { useRoute } from "vue-router";
import SetTitle from "./setting.ts";
//引入菜单组件
import Menu from "./menu/index.vue";
//右侧内容展示区域
import Main from "./main/index.vue";
// 引入tabbar
import Tabbar from "./tabbar/index.vue";
// 引入Drawer组件
import Draw from "./draw/index.vue";
// 引入footer组件
import Footer from "./footer/index.vue";
//获取用户相关的小仓库
import useUserStore from "@/store/modules/user";
import useLayoutStore from "@/store/modules/setting.ts";
// 是否折叠菜单栏
let layoutStore = useLayoutStore();

let userStore = useUserStore();

//获取路由对象
let $route = useRoute();

onMounted(() => {
  // 监听窗口大小变化
  window.addEventListener("resize", () => {
    const w = document.documentElement.clientWidth;
    // const h = document.documentElement.clientHeight;
    // console.log('页面大小发生了变化', `宽度：${w}`, `高度：${h}`);
    if (w <= 750) {
      layoutStore.fold = true;
    } else {
      layoutStore.fold = false;
    }
  });
});
</script>

<script lang="ts">
export default {
  name: "Layout",
};
</script>

<style scoped lang="scss">
.el-container {
  width: 100%;
  height: 100%;

  .el-aside {
    height: 100vh;
    background-color: #001529;
    color: #fff;
    transition: width 0.3s;

    .scrollbar {
      width: 100%;
      height: calc(100vh - 50px);
    }

    .el-menu {
      border-right: none;
    }
  }

  .logo {
    height: 50px;
    display: flex;
    justify-content: center;
    align-items: center;

    img {
      width: 32px;
    }

    .title {
      margin-left: 10px;
      font-size: 20px;
    }
  }

  .el-container {
    border-left: 1px solid #e4e7ed;

    .el-header {
      border-bottom: 1px solid #e4e7ed;
    }
  }

  .el-main {
    background-color: #f2f3f5;
  }
  .el-footer {
    height: unset;
    padding: 0;
  }
}
</style>

4.5 递归渲染菜单 ​

  1. 核心菜单组件

    vue
    <template>
  <div>
    <template v-for="item in menulist" :key="item.path">
      <!-- 没有子路由 -->
      <template v-if="!item.children">
        <el-menu-item v-if="!item.meta.hidden" :index="item.path">
          <template #title>
            <span>{{ item.meta.title }}</span>
          </template>
        </el-menu-item>
      </template>
      <!-- 有且只有一个子路由 -->
      <template v-else-if="item.children && item.children.length == 1">
        <el-menu-item
          v-if="!item.meta.hidden"
          :index="item.children[0].path"
        >
          <template #title>
            <span>{{ item.children[0].meta.title }}</span>
          </template>
        </el-menu-item>
      </template>
      <!-- 有多个子路由 -->
      <template v-else>
        <el-sub-menu v-if="!item.meta.hidden" :index="item.path">
          <template #title>
            <span>{{ item.meta.title }}</span>
          </template>
          <Menu :menulist="item.children"></Menu>
        </el-sub-menu>
      </template>
    </template>
  </div>
</template>
<script setup lang="ts">
defineProps(["menulist"]);
</script>
<script lang="ts">
export default {
  // 引入递归组件名
  name: "Menu",
};
</script>
<style scoped></style>

  2. 路由示例

    js
    // 登录
path: "/login",
component: () => import("@/views/login/index.vue"),
name: "login", // 命名路由
meta: {
  title: "登录",
  hidden: true, // 是否显示在左侧菜单
  icon: "House", // 菜单图标
},
children: [] // 子路由

  3. 全局注册菜单图标

    Object.entries() 是用于返回一个给定对象自身可枚举属性的键值对

    js
    // src/components/index.ts
// 引入element-plus提供的全部图标组件
import * as ElementPlusIconsVue from "@element-plus/icons-vue";
// 将element-plus提供的全部图标组件注册为全局组件
for (const [key, component] of Object.entries(ElementPlusIconsVue)) {
  app.component(key, component);
}

  4. 使用菜单图标

    vue
    <el-icon>
<component :is="item.meta.icon"></component>
</el-icon>

4.6 路由出口 ​

  • 定义二级路由出口

    vue
    // src/views/layout/main/index.vue
<template>
  <!-- 路由组件出口的位置 -->
  <router-view v-slot="{ Component }">
    <transition name="fade">
      <!-- 渲染layout一级路由组件的子路由 -->
      <component :is="Component" />
    </transition>
  </router-view>
</template>
<script setup lang="ts"></script>
<style scoped>
/* 动画效果 */
.fade-enter-from {
  opacity: 0;
  transform: scale(0);
}
.fade-enter-active {
  transition: all 0.3s;
}
.fade-enter-to {
  opacity: 1;
  transform: scale(1);
}
</style>

4.7 顶部 tabbar 搭建 ​

  1. 左侧面包屑动态导航

    vue
    <template>
  <el-icon class="change-icon" @click="changeIcon">
    <!-- 使用动态组件component渲染图标组件 -->
    <component :is="!layoutStore.fold ? 'Fold' : 'Expand'"></component>
  </el-icon>
  <el-breadcrumb separator-icon="ArrowRight">
    <el-breadcrumb-item
      :to="item.path"
      v-for="item in $route.matched"
      v-show="item.meta.title"
    >
      <el-icon class="menu-icon">
        <component :is="item.meta.icon"></component>
      </el-icon>
      <span>{{ item.meta.title }}</span>
    </el-breadcrumb-item>
  </el-breadcrumb>
</template>

<script setup lang="ts">
import { ref } from "vue";
import useLayoutStore from "@/store/modules/setting.ts";
import { useRoute } from "vue-router";
let $route = useRoute();

// 是否折叠菜单栏
let layoutStore = useLayoutStore();
// 折叠菜单栏
const changeIcon = () => {
  // 图标切换
  layoutStore.fold = !layoutStore.fold;
};
</script>
<script lang="ts">
export default {
  name: "Breadcrumb",
};
</script>

<style scoped lang="scss">
// 兼容移动设备 面包屑在移动端不显示
@media screen and (width <= 750px) {
  .el-breadcrumb {
    display: none;
  }
}
</style>

  2. 右侧设置选项

    vue
    <template>
  <el-button circle icon="Refresh"></el-button>
  <el-button circle icon="FullScreen"></el-button>
  <el-button circle icon="Setting"></el-button>
  <el-dropdown>
    <div>
      <div class="el-dropdown-link">
        <el-avatar
          :size="24"
          src="https://cube.elemecdn.com/0/88/03b0d39583f48206768a7534e55bcpng.png"
        />
        <span class="name">Admin</span>
        <el-icon class="el-icon--right">
          <arrow-down />
        </el-icon>
      </div>
    </div>
    <template #dropdown>
      <el-dropdown-menu>
        <el-dropdown-item>退出登录</el-dropdown-item>
        <el-dropdown-item divided>个人中心</el-dropdown-item>
      </el-dropdown-menu>
    </template>
  </el-dropdown>
</template>
<script setup lang="ts"></script>
<style scoped lang="scss"></style>

  3. 组件化

    vue
    // src/views/layout/tabbar/index.vue
<template>
  <div class="tabbar">
    <div class="tab-left">
      <BreadCrumb></BreadCrumb>
    </div>
    <div class="tab-right">
      <Setting></Setting>
    </div>
  </div>
</template>
<script setup lang="ts">
import BreadCrumb from "./breadcrumb/index.vue";
import Setting from "./setting/index.vue";
</script>
<style lang="scss">
.tabbar {
  width: 100%;
  height: 100%;
  display: flex;
  align-items: center;
  justify-content: space-between;
  .tab-left {
    display: flex;
    .el-icon {
      margin: 0 15px;
      cursor: pointer;
    }
  }
  .tab-right {
    display: flex;
    align-items: center;
    margin-right: 20px;
    line-height: 50px;
    .el-avatar {
      margin: 0 5px 0 10px;
    }
    .name {
      color: #666;
    }
    .el-dropdown-link {
      display: flex;
      align-items: center;
      cursor: pointer;
    }
  }
}
</style>

4.8 刷新及全屏业务的实现 ​

  1. 定义 state 变量

    js
    // src/store/modules/setting.ts
state: () => {
    return {
      fold: false, // 控制菜单折叠收起
      refresh: false, // 控制刷新效果
    };
  },

  2. 刷新功能实现

    vue
    // src/views/layout/main/index.vue
<template>
  <!-- 路由组件出口的位置 -->
  <router-view v-slot="{ Component }">
    <transition name="fade">
      <!-- 渲染layout一级路由组件的子路由 -->
      <component :is="Component" v-if="refreshFlag" />
    </transition>
  </router-view>
</template>

<script setup lang="ts">
import { watch, ref, nextTick } from "vue";
import useLayoutStore from "@/store/modules/setting";
let layoutStore = useLayoutStore();
let refreshFlag = ref(true);
// 监听是否刷新
watch(
  () => layoutStore.refresh,
  () => {
    refreshFlag.value = false;
    // 组件渲染完毕
    nextTick(() => {
      refreshFlag.value = true;
    });
  }
);
</script>

  3. 触发刷新操作

    vue
    <el-button circle icon="Refresh" @click="updateRefresh"></el-button>
<script setup lang="ts">
import useLayoutStore from "@/store/modules/setting";
let layoutStore = useLayoutStore();
const updateRefresh = () => {
  layoutStore.refresh = !layoutStore.refresh;
};
</script>

  4. 全屏实现

    js
    // 点击全屏按钮事件
const fullScreen = () => {
  // 当前页面是否全屏
  let full = document.fullscreenElement;
  if (!full) {
    // 实现全屏
    document.documentElement.requestFullscreen();
  } else {
    // 退出全屏
    document.exitFullscreen();
  }
};

4.9 获取用户信息 ​

  1. 用户仓库引入接口

    js
    // src/store/modules/user.ts
import { login, getUserInfo } from "@/api/user";
state: () => {
    return {
      token: localStorage.getItem("TOKEN") || "",
      menuRouters: constantRouter, // 菜单路由数组
      username: "", // 用户名
      avatar: "", // 头像
    };
  },
 // 异步/逻辑的地方
actions: {
    // 获取用户信息的方法
    async getUser() {
      const result: any = await getUserInfo();
      console.log(result);
      if (result.code == 200) {
        this.username = result.data.checkUser.username;
        this.avatar = result.data.checkUser.avatar;
      }
    },
}

  2. 添加请求拦截器

    js
    // src/utils/request.ts
request.interceptors.request.use((config) => {
  const userStore = useUserStore();
  console.log(userStore.token);
  if (userStore.token) {
    config.headers.token = userStore.token;
  }
  return config;
});

  3. 渲染用户信息

    js
    // 引入用户仓库数据
import useUserStore from '@/store/modules/user';
let userStore = useUserStore();
// 渲染数据
<el-avatar :size="24" :src="userStore.avatar" />
<span class="name">{{ userStore.username }}</span>

4.10 退出登录 ​

  1. 重置仓库用户信息

    js
    // src/store/modules/user.ts
// 退出登录的方法
userLogout() {
  // 清除用户信息
  this.token = "";
  this.username = "";
  this.avatar = "";
  localStorage.removeItem("Token");
},

  2. 触发退出登录操作

    ts
    import { useRoute } from "vue-router";
let userStore = useUserStore();
import useUserStore from "@/store/modules/user";
// 获取路由信息对象
let $router = useRoute();
// 退出登录
const exit = () => {
  userStore.userLogout();
  //跳转到登录页面，在URL中保存跳转前的路径
  $router.push({ path: "/login", query: { redirect: $route.path } });
};

  3. 登录页处理

    js
    import { useRouter, useRoute } from "vue-router";
// 获取路由器对象
let $router = useRouter();
// 获取路由信息对象
let $route = useRoute();
// 登录回调
const login = () => {
  // 判断登录的时候,路由路径当中是否有query参数
  let redirect: any = $route.query.redirect;
  // 如果有就往query参数跳转，没有跳转到首页
  $router.push({ path: redirect || "/" });
};

4.11 进度条 ​

  1. 安装 nprogress

    pnpm i nprogress

  2. 新增路由鉴权文件

    js
    // src/router/permission.ts
// 路由鉴权
import router from "./index.ts";
// 引入进度条
import nprogress from "nprogress";
import "nprogress/nprogress.css";
// 全局前置守卫
router.beforeEach((to, from, next) => {
  // to and from are both route objects. must call `next`.
  console.log(to, from);
  nprogress.start();
  next();
});
// 全局后置钩子
router.afterEach(() => {
  // to and from are both route objects.
  nprogress.done();
});

  3. 导入入口文件

    js
    // 引入路由鉴权文件
import "./router/permission.ts";

4.12 路由鉴权 ​

  1. 核心功能实现

    js
    // src/router/permission.ts
// 导入用户仓库获取token
import useUserStore from "@/store/modules/user.ts";
import pinia from "@/store/index.ts";
import { ElNotification } from "element-plus";
// 去除小圆圈
nprogress.configure({ showSpinner: false });
const userStore = useUserStore(pinia);
const username = userStore.username;

// 全局前置守卫
router.beforeEach((to, from, next) => {
    // 获取token 判断用户是否登录
  const token = userStore.token;
  console.log(token);
  if (token) {
    if (to.path == "/login") {
      next("/");
    } else {
      // 是否有用户信息
      if (username) {
        // 有就放行
        next();
      } else {
        // 获取用户信息
        userStore
          .getUser()
          .then(() => {
            next();
          })
          .catch((err) => {
            // token过期 退出登录
            ElNotification({
              type: "error",
              message: err,
            });
            userStore.userLogout();
            next("/login");
          });
      }
    }
  } else {
    if (to.path == "/login") {
      next();
    } else {
      next({ path: "/login", query: { redirect: to.path } });
    }
  }
}

Copyright © 2024-2025 Panda工作室
